Model LG 580.77128 300 THROUGH THE WALL AC – Common Parts & Diagrams
Diagram 0
Diagram 1
Diagram 2
Diagram 3

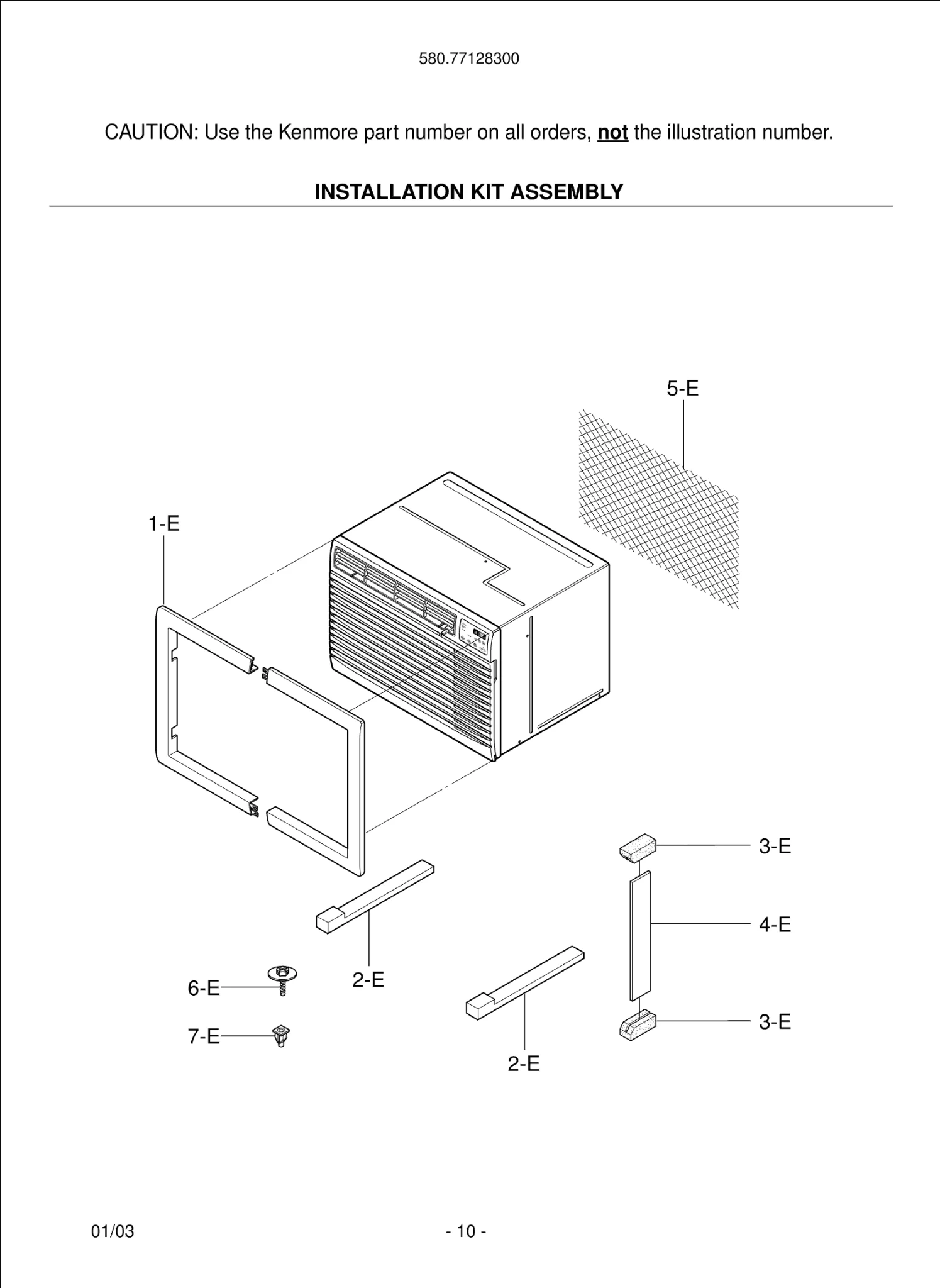

Diagram 4
Common parts from model LG 580.77128 300 THROUGH THE WALL AC
1-B

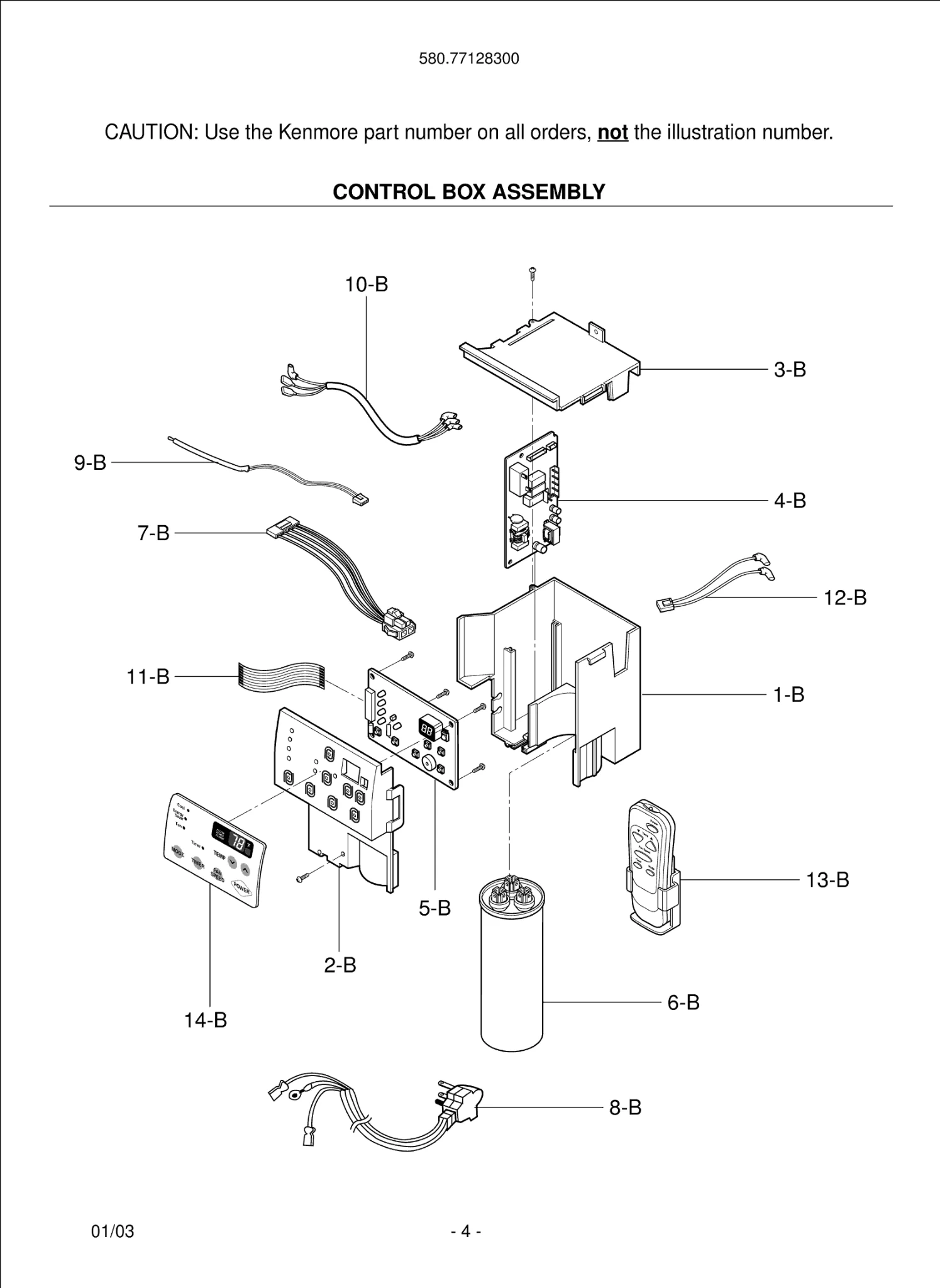

CONTROL BOX,SINGLE LGE 4994A10051A Contact Us For Availability
1-C
EVAPORATOR ASSY,FIRST LGE 5421A20060A Contact Us For Availability
1-C
Evaporator Assembly,First LGE 5421A90038A Contact Us For Availability
2-B
PANEL,CONTROL LGE 3720A10128A Contact Us For Availability
2-D
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
3-B
COVER ASSEMBLY,CONTROL(SINGLE) LGE 3551A20092A Contact Us For Availability
3-D
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
3-E
INSULATION,PE LGE 5410A20069A Contact Us For Availability
4-B
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20343B Contact Us For Availability
4-C
SCROLL LGE 3072A20003B Contact Us For Availability
4-E
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
5-B
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20344B Contact Us For Availability
5-C
BARRIER,SINGLE LGE 4790A20024B Contact Us For Availability
6-A
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
6-C
BASE ASSEMBLY,SINGLE LGE 3041A10014T Contact Us For Availability
6-D

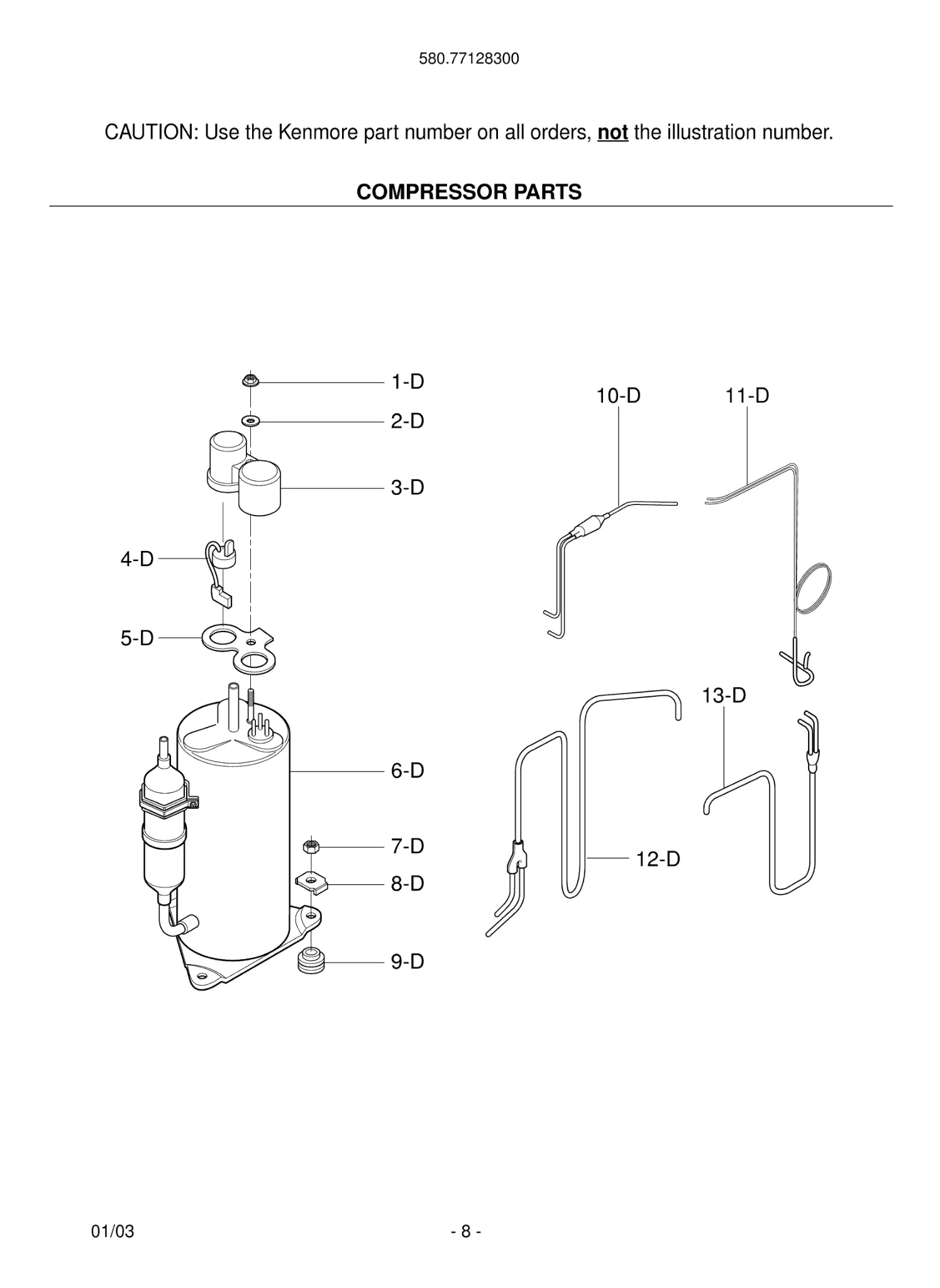

COMPRESSOR SET LGE 2520UKHK2CA Contact Us For Availability
7-A
LINK LGE 4520A20003A Contact Us For Availability
7-C
MOTOR ASSEMBLY,SINGLE LGE 4681A20041C Contact Us For Availability
7-C
Package Assembly,C/SKD LGE 3911A30056Q Contact Us For Availability
8-A
LABEL,ENERGY LGE 3850A20928A Contact Us For Availability
8-B
POWER CORD ASSEMBLY LGE 6411A20028B Contact Us For Availability
9-B
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
9-C

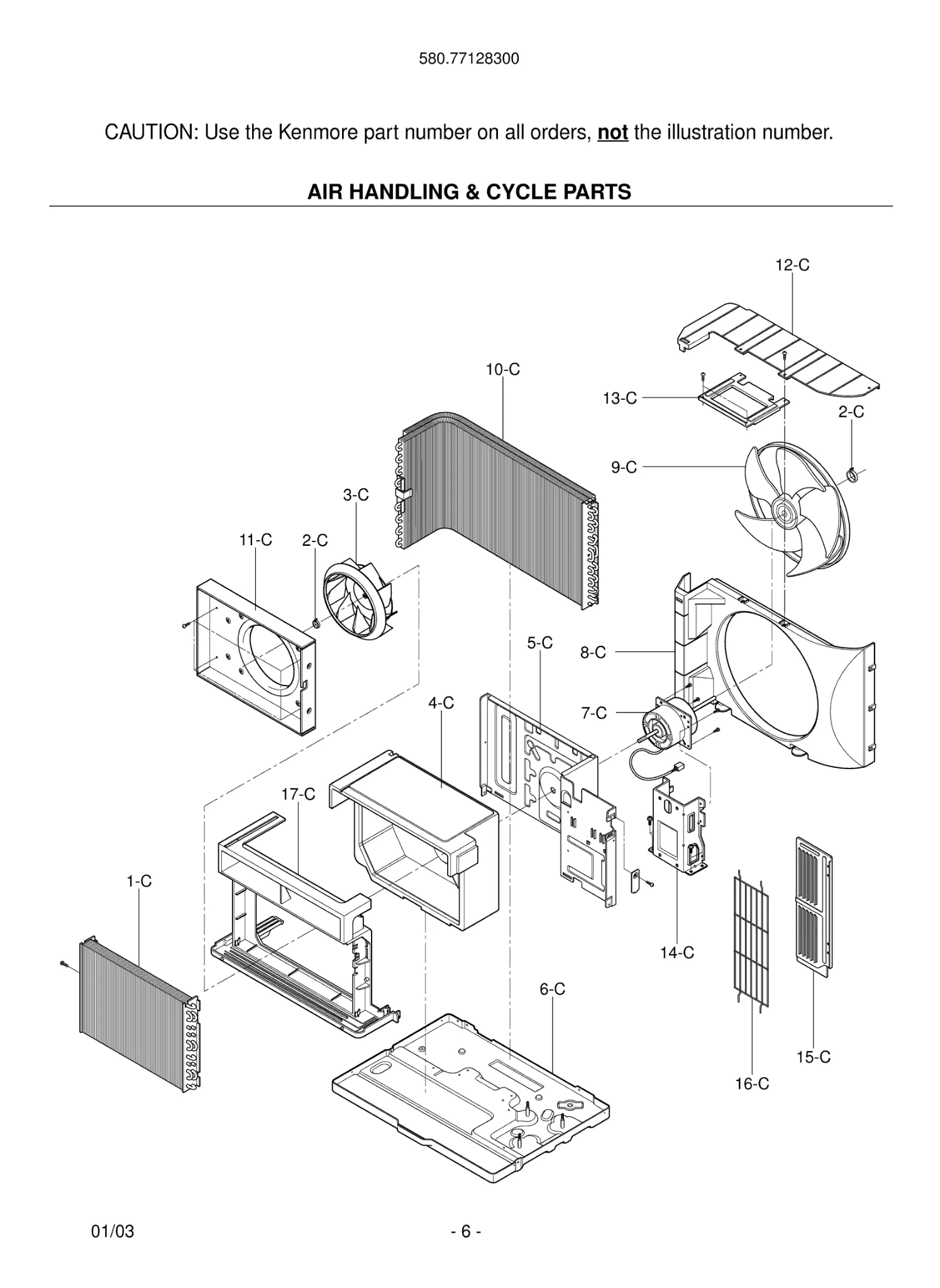

FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
10-B
CONNECTOR ASSEMBLY LGE 6631A30027A Contact Us For Availability
10-C
CONDENSER ASSEMBLY,BENT LGE 5403A20040H Contact Us For Availability
10-D
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20904A Contact Us For Availability
11-B
CONNECTOR ASSEMBLY LGE 6631A10005C Contact Us For Availability
11-D
TUBE ASSEMBLY,CAPILLARY LGE 5211A20214K Contact Us For Availability
12-C
COVER LGE 3550A20030B Contact Us For Availability
12-D
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A30587A Contact Us For Availability
13-B
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
13-D
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30588A Contact Us For Availability
14-B
ESCUTCHEON LGE 3831A10027A Contact Us For Availability
15-C
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
16-C
GRILLE,REAR LGE 3530A30007A Contact Us For Availability
17-C
AIR GUIDE LGE 5238A20005A Contact Us For Availability
× ![]()
